RSD/RS Series

• Products Road Marking Machine -TOP

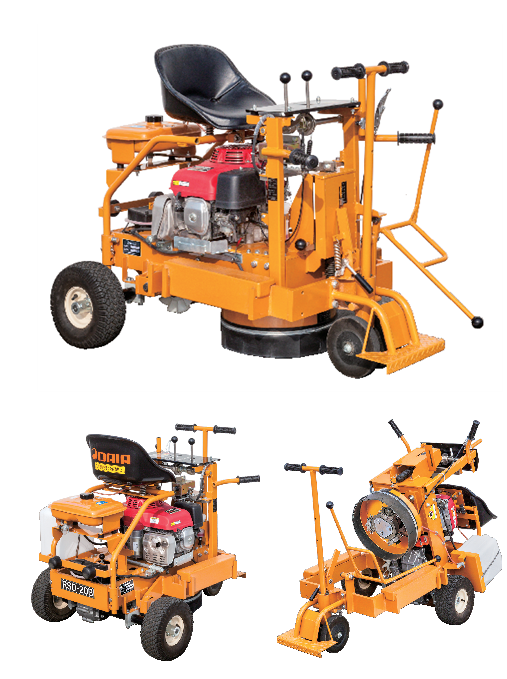

Self-propelld line remover RSD-20

In creases efficiency by minimizing the stress of the removing process. Increased body rigidity, Reduced cancellation vibration and stable running. ■Remove width 220㎜ and sharp curve at outside is available by generous. ■Engine output 8.1kW/3,600rpm It is triple than manual type. Work efficiency 300m/h. ■Cell starter and recoil combined circuit for battery trouble. ※Caution ◆ Do not drive outside the work control area. Need a car license to drive. (under Japanese law.)

Item No. RSD-20B   Dimension  (L)1,400 x (H)1,100 x (W)910 mm  Weight  300kg  Remove width  220mm  Engine type  Air cool 4cycle OHV Vertical type GXV340  Engine rated output  8.1kW(11ps)/3,600rpm  Fuel tank  6L

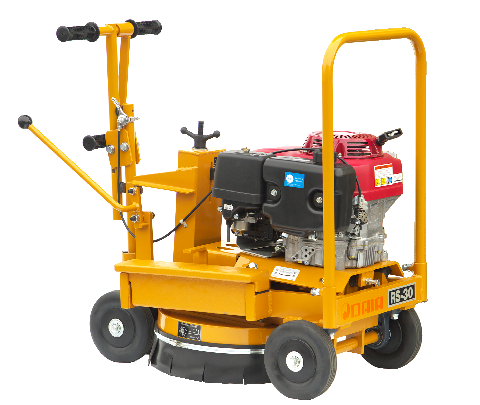

High speed manual type line remover RS-30

Cutter pressure adjustment handle for outstanding 　removing efficiency. Generrous power and acomfortable handling feel. The pressure adjustment handle can be used to change the load on the cutter to improve removing efficiency! ■Easy operation. Easy handling. ■Easy replace cutter by open mechanism. ■Easy to operate diapenser(option). ■Output 8.1kW/3,600rpm engine.
Item No. RS-30   Dimension  (L)900 x (H)960 x (W)530 mm  Weight  200kg  Remove width  180mm  Engine type  Air cool 4cycle GXV340  Engine rated output  8.1kW(11ps) / 3,600rpm  Fuel tank  2L

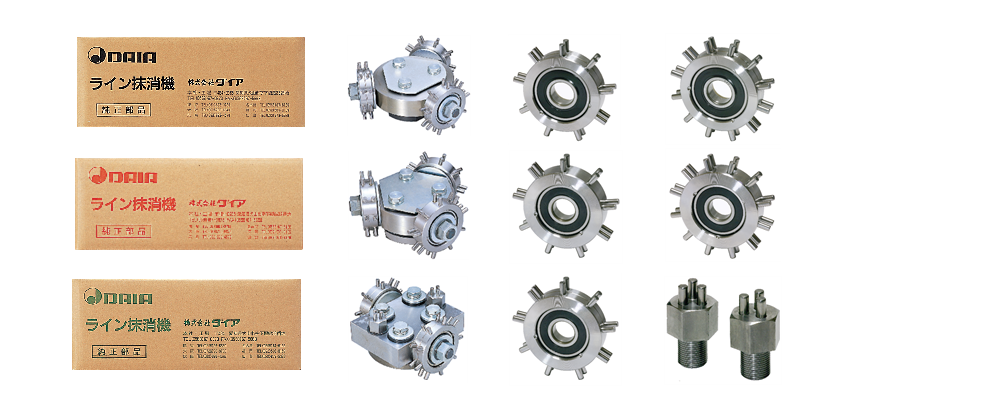

Cutter blade (RSD-20B/RS-30)
