PS Series

Primer Spreader

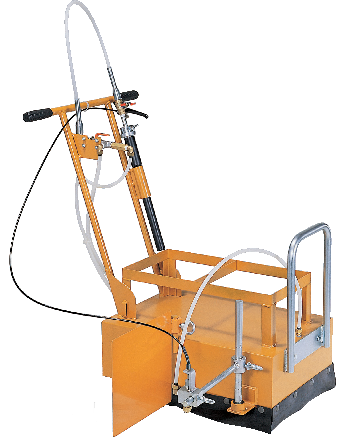

 Primer Spreader PS-Ⅲ  A light push automatically pressurizes
and sprays the primer.

Automatic pressurization pressure type spread.
■Automatic pressurized spraying using a high-performance trochoid pump ensures constant discharge regardless of speed.
■The spraying run is light, making it easy to work for long hours.
■The primer spray rate can be adjusted by opening of the
three- way cock.
■The primer can be applied from 10 to 45 cm in width with the same tip, just by turning the gun up and down.

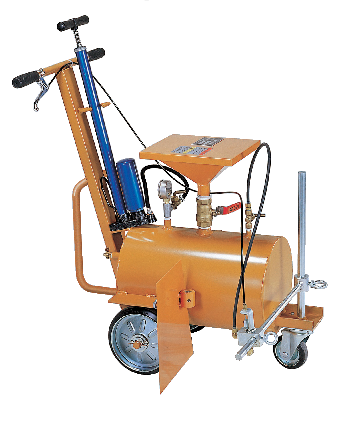

Primer Spreader PS-Ⅱ
 Lightweight, compact, and capable of uniform spraying in any direction.
The primer is sprayed under pressure with a hand pump. Spray width is adjustable.
■Primer can be spread evenly over the road surface
■The machine's low center of gravity, light weight, and compact size make it
easy to feed primer into the machine.
■Quick turn possible by 3 wheels

 Item No.  PS-Ⅲ PS-Ⅱ
 Dimension  (L)740 x (W)460(740) x (H)850 mm ( L)740 x (W)500(750) x (H)850mm
 Weight  30kg  25kg
 Tank capacity  2 can(36L)  1 can(18L)
 Spray pressure  0.3MPa  0.2-0.6MPa
 Spray width  10-45cm  10-50cm
 Air source  Trochoid pump  Hand pump
