Hand Road Marking Machine　KLD/KL Series

• Products Road Marking Machine -TOP

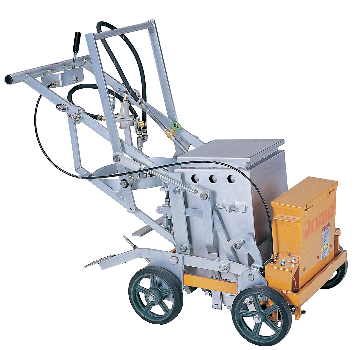

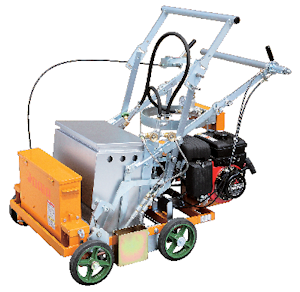

Self-propelled hand liner KLD-45

Self-propelled increases work efficiency！ Superior operability and straightness in a compact body. ■ Easier material replenishment round-trip, improving work efficiency. ■ Both rear wheels are driven. Differential gears provide direct maneuverability. 　Ease of maintenance has also been improved. ■ Pursuit of light weight and compactness. The world's smallest self-propelled type (overall length 1,200 mm). 　It is self-propelled by hand and easy to load and unload.

Item No. KLD-45   Dimension (L)1,200 x (H)1,060 x (W)820mm   Weight  220kg  Hopper capacity  37L(74kg)  Bead Tank capacity  10L(16kg)  Gas cylinder  10kg  Line width  45cm  Bead spread method  Quantitative spraying  Bead spreadvolume  adjustable  Engine type  Air-cool 4 cycle  Engine rated output  2.1kW(2.8ps) / 1,800rpm  Fuel tank capacity  2.5kg

Paint thickness adjustable lever (KLD/ KL)

Hand liner KL-45HA / KL-30H

KL-30H

Paint thickness is adjustable by handle ! Lightweight, compact, and easy to operate with excellent straight-line performance. ■The side line up/down allows easy film thickness adjustment with a handle. (Adjustment is possible in 0.1mm increments.) ■The shutter handle can be opened or closed by pushing or pulling. ■The bead lever is at hand for easy operation. ■Bead spreading is adjustable with a metered rate spreading system. The height of the handle can be adjustable.
