Hand Road Marking Machine CLD/CL Series

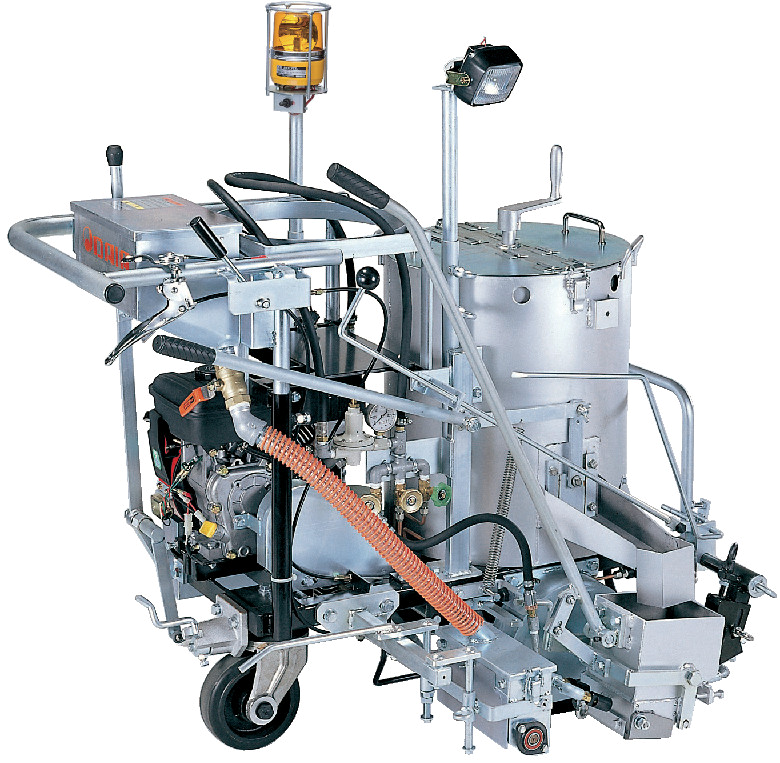

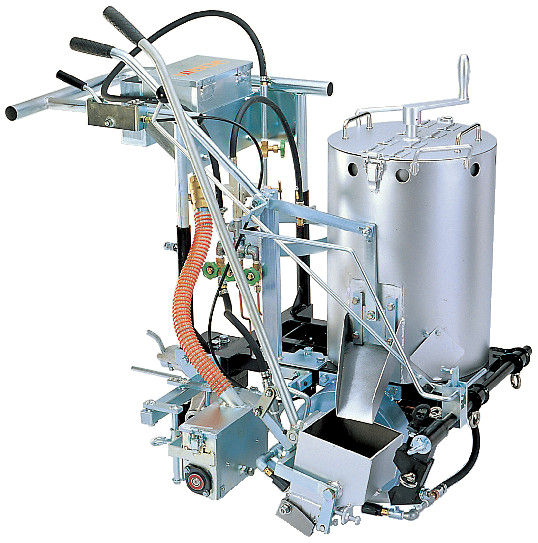

CLD-15C

  Drives front wheels on both wheels
Adopts differential gear and achived excellent operability
Direct maneuverability
A link type is adopted for forward/backward operation.
Maintennance is also improved.
Pursuit of light weight and compactness
The smallest self-propelled type(overall length 1,200mm).
it is easy to load and unload.
Self-propelled for improved work efficiency.
Excellent operability and straight-line stability achieved with a compact body.
Lever (slit) is not included. Kindly choose your width and type .

Item No  CLD-15C
 Dimension (L)1,200 x (H)1,100 x (W)770 mm
 Weight 186kg
 Pot capacity 65L(130kg)
 Bead tank capacity 6L(10kg)
 Gas cylinder 10kg
 Line width 15cm(replacement slit 5-30cm)
 Beads spread quantity 20-30g/m(15cm/width)
 Beads spread width  15cm / 20cm
 Beads spread method Quantative spread
 Tool box Our Standard
 Engine type  Air 4 cycle
 Engine rated output 2.1kW(2.8ps)/1,800rpm
 Engine fuel tank 2.5L


CLD-15EC

Emphasis road-following performance
and demonstrated on rough roads.

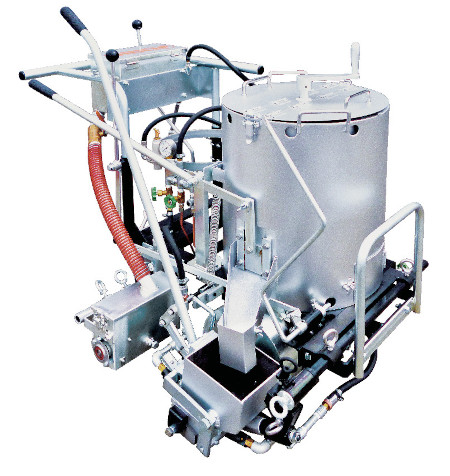

  CL-15EC
5kg Cylinder Adaptor		 Easy to change colors.
■A warm pot is easy to change.
Compafortable operation
■The guide rod can be easily up and down without having to take his/her hands off the handle.
■Shoe opening and closing is one-touch.
Material movement is sharp.
■Uniquely developed shoe side plates are movable.
The edge and surface pattern on rough surfaces are the best finish.
Pursue light weight. compact.
■Easy loading.
 USER friendly design.
■Slit handle is available for 1 handle
lever・2PCS lever and T type lever.
 Lever(slit)is not included. kindly choose your width and type.  ■Gas burner is wind-resistant and easy to clean.
Paint thickness adjustable system.
■The slit's thickness can be adjusted from 1 to 3 mm by slit adjustment
Beads spread adjustable system
■The spray position can be freely adjusted to the left or right while the machine is running.

CLD-15FS

Compact 70kg insulated pot! Ideal for small-scale construction.
CL-15FS
Lever (slit) is not included. Kindly choose your width and type .

Item No.  CL-15EC  CL-15FS
 Dimension (L)1,155x(H)975x(W)810mm   (L)1,120x(H)980x(W)720mm
 Weight 120kg 100kg
 Warm pot capacity  50L(100kg)  35L(70kg)
 Beads tank capacity 5L(8kg)  5L(8kg)
 Gas cylinder 10kg  5kg
 Line width 15cm
(replacement slit 5-30cm) 		  15cm
(replacement slit 5-20cm)
 Beads spread type  Quantitative spread
 Beads spread volume 20-30g/m(15cm witdh)
 Beads spread width 15cm/20cm
 Tool box Out standard  Our standard
 Bumper Out standard   -

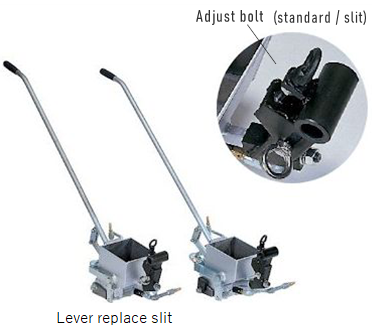

Han liner replace slit(Lever) for CLD-15A/ CLD15EA/ CLD-15FS






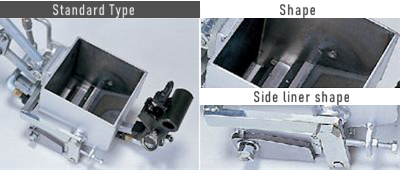

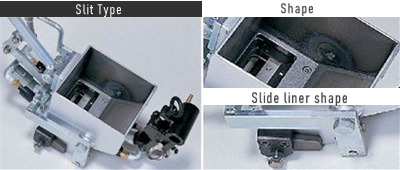

Line width   Standard type Slit type
 Item No.  Item No.
 30cm  DS-300A  DS-300
 20cm  DS-200A  DS-200
 15cm  DS-150A  DS-150
 10cm  DS-100A  DS-100
 5cm  DS-50A  DS-50

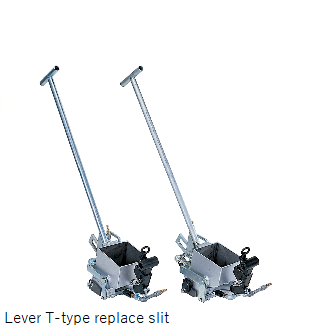

Line width   Standard type Slit type
 Item No.  Item No.
 30cm  DS-300TA  DS-300T
 20cm  DS-200TA  DS-200T
 15cm  DS-150TA  DS-150T
 10cm  DS-100TA  DS-100T
 5cm  DS-50TA  DS-50T

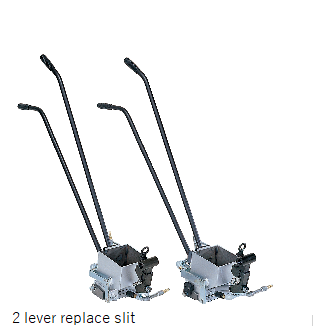

Line width   Standard type Slit type
 Item No.  Item No.
 30cm  DS-300WA  DS-300W
 20cm  DS-200WA  DS-200W
 15cm  DS-150WA  DS-150W
 10cm  DS-100WA  DS-100W
 5cm  DS-50WA  DS-50W

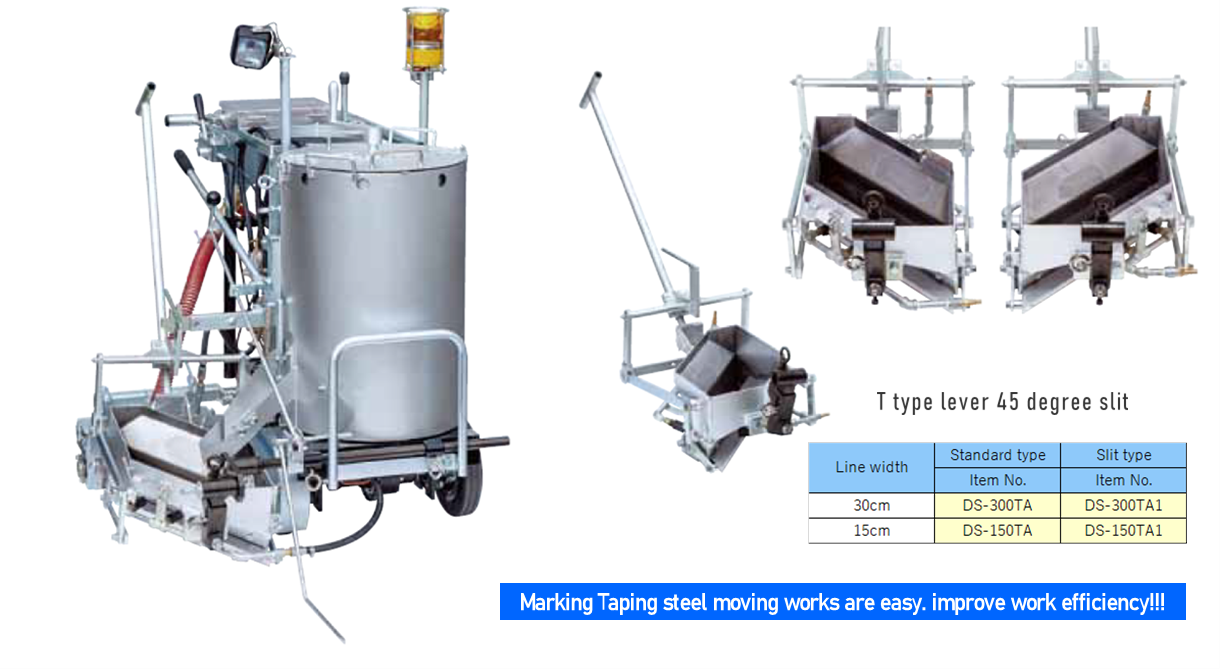

Replacement slit for hand liner T-type 45 degree slit (CLD-15C/15EC)




OPTION (Hand Road Marking Machine CLD Series)

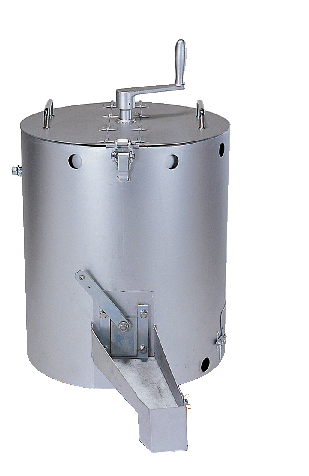

Warmer(pot)

Applicable
Model  		  Standard  Option
 CLD-15A  130kg(steel)  130kg(stainless) 100kg(steel)  100kg(stainless)
 Item No.  9D-AK7318  9D-AK7317  9D-AK7302  9D-AK7316


 Applicable
model 		  Standard  Option
 CLD-15EC  100kg(Steel)  100kg(Stainless)  70kg(Steel)
 Item No.  9D-AK5905  9D-AK6703  9D-AK5975

 Applicable
model		  Standard  Option
 CLD-15FS  70kg(Steel)  100kg(Stainless)
 Item No.  9D-AK7504  9D-AK7513

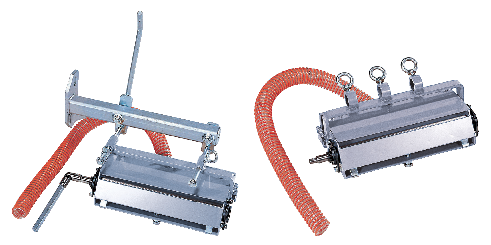

Bead spreader


Line Width   CLD-15A  CL-15EA  CL-15FS
 Item No.  Item No.  Item No.
 30cm DB30E   B30  -
 5-20cm  DB20E  B20 B20F

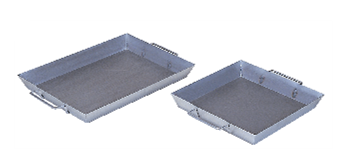

Pallet





        C-4 Thermometer
 Size  Dimension  Weight Item No.
 Large  (L)700x(W)500x(D)75mm  6.0kg  AA0452
 Small  (L)500x(W)500x(D)75mm  4.5kg  AA0453

Length  Display  Item No.
 330mm 0℃～400℃   SKANS-123-002

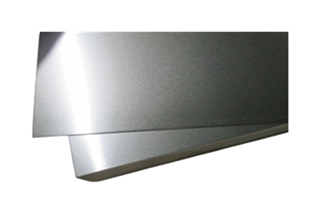

 Steel / Aluminum Sheet

 Description Dimension(mm)  Item No.
 Steel sheet(zinc coating)  　(T)0.5 x (L)450 x (W)900　 　 AA0650A　
 Aluminum Sheet(Test pc 15cm)  (T)1.0 x (L)100 x (W)250 　 AA0651A　
 Aluminum Sheet(Test pc 30cm)  (T)1.0 x (L)100 x (W)400 　 AA0651B　
 Aluminum Sheet(Test pc 45cm)  (T)1.0 x (L)100 x (W)550 　 AA0651C　

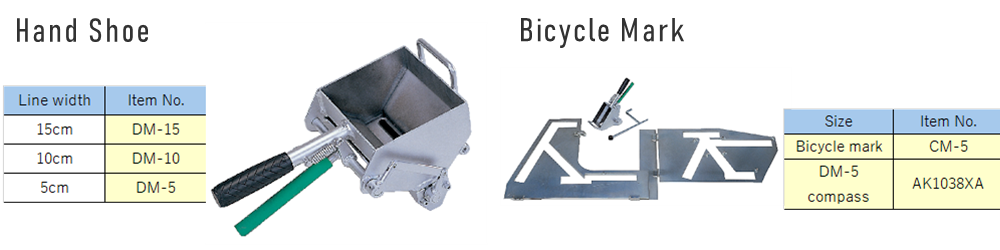

 ■Other are available



↑
