Special kneader　

• Products Road Marking Machine -TOP

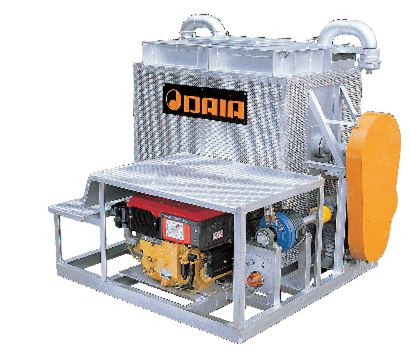

PSN Series (Special kneader PSN-100/PSN-600/PSN-300)

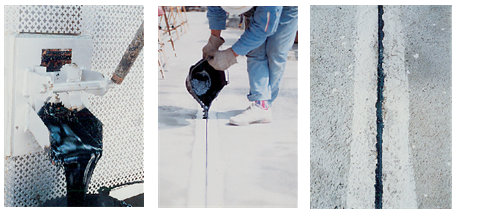

Machine for concrete joint Easy agitation for material by strong driving device. ■By line burner suitable for the material,can available average melting. ■Kneader for easy feeding of solid materials.
Item No. PSN-1000  PSN-600  PSN-300   Capacity  1000kg 600kg  300kg   Engine rated output  7.3kW(10ps)/2,400rpm  6.6kW(9ps)/2,600rpm  2.1kW(2.8ps)/1,800rpm  Heat type   Line burner 4x1  Agitation type   Horizontal rotaly propeller  Dimension  (L)1,885 x (H)1,675 x (W)2,150 mm  (L)1,730 x (H)1,500 x (W)2,050 mm  (L)900 x (H)1,440 x (W)1,350 mm  Weight  1,500kg 1,100kg   600kg

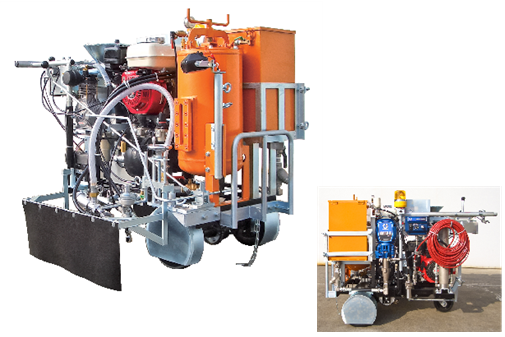

PMD-1

Self-propelled, lightweight and compact. Oil・Water paint are available.

■Unique weight balance ensures stable operability. ■The use of a high-performance piston pump allows the use of high-viscosity paints and excellent line edge patterns. ■Bead are pneumatically driven by compressor oressure. Taco-graph・low speed meter ・work light,rotaly light are standard equipment.

Item No. PMD-1   Dimension  (L)1,380 x (H)1,090 x (W)1,070 mm   Weight   310kg (in dry)  Available paint   For normal temp aqueous and solvent Engine  type Air 4 cycle gasoline engine   spec  Rated output 3.4kW(4.7ps)   driven  Variable speed(HST)   gear speed  Stepless(forward backfoward)   speed meter  0-6 km/h   Compressor  rated output 0.75kW   air discharge  97L/min Paint paint   model  Engine piston pump  max discharge  6L/min  paint pressure  22.8MPa  tank capacity  paint tunk (28L)  filter  marerial filter 60mesh  paint gun  air type auto airless gun Bead   tank capacity  23L(bead 30kg)  bead gun air type auto gun
