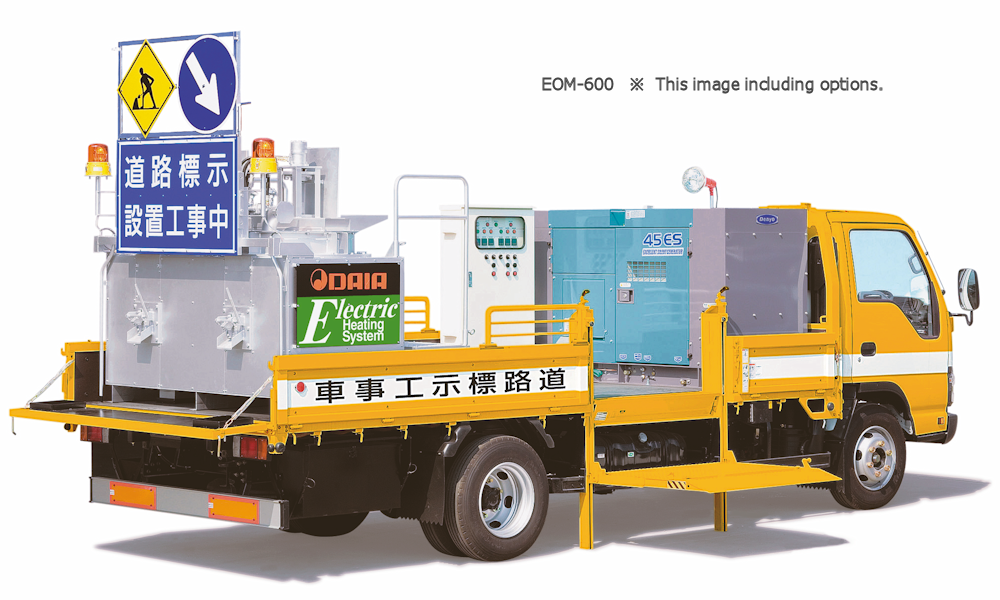

Hydraulic kneader EOM Series (Electric Heating type)
Hydraulic kneader EOM Series
| Item No | EOM-600 | EOM-400 |
| Dimension | L1640xW1820xH1650mm | L1560xW1660xH1500mm |
| Weight | 760kg | 660kg |
| Capacity | 300kg x double | 200kg x double |
| Heating type | Electric heating | Electric heating |

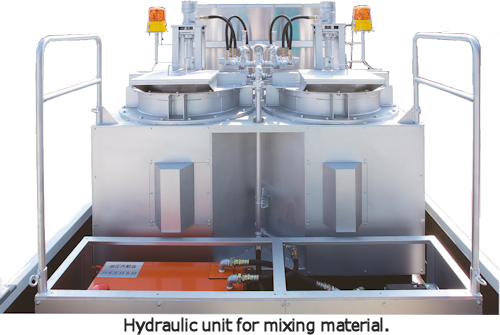

| Agitation | Hydraulic | Hydraulic |
| Agitation speed | 0 - 80rpm | 0 - 80rpm |
| Hydraulic pressure rate | 5MPa | 5MPa |
| Hydraulic rated flow rate | 28L/min | 14L/min |
| Pump | Electric motor | Electric motor |

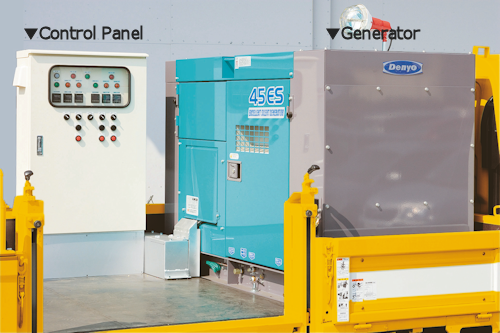

| Generator | DCA-45ESI 220V 60Hz 45kVA | CA-25ESI 220V 60Hz 25kVA |
Unique
pot design that considers agitation efficiency to obtain
quick
material dissolution
■The
shape of the pot efficiently absorbs heat to the pot side, resulting in quick material melting.
■A
head plate is attached to the bottom of the pot to prevent deformation and burning of materials due to heat.

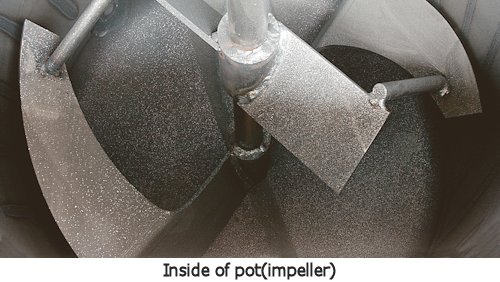

■Efficient
convective agitation can be achieved with the vortex type impeller.
■The
rotation speed of the impeller can be changed sleeplessly
with just a valve.
Safe
and secure device for prevent burning.（standard.）

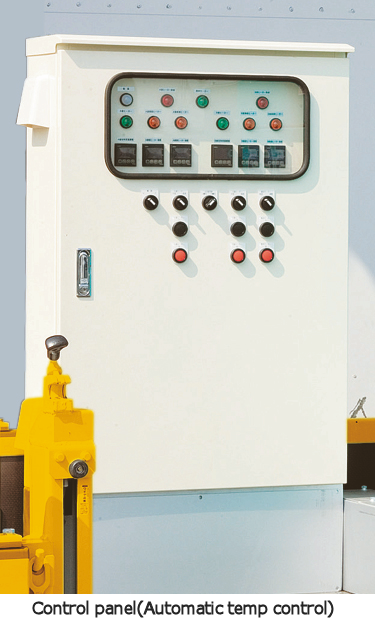

■Equipped
with an automatic temperature controller, the temperature eliminates
the risk of material burning or fire due to overheating.
